A run chart is a line chart of data plotted over time. In other words, a run chart graphically depicts the process performance or data values in time order. Viewing data over time gives a more accurate conclusion rather than just summary statistics.

A run chart is also known as trend chart or time series plot. Usually, run charts are used in measure phase of DMAIC project and it helps to identify trends or shifts in process and allows testing for randomness in the process.

## Difference between Run chart and control chart

Control charts are used to monitor the stability of the process. In other words, measure any type of output variable over time and see the results consistently fall within the control limits. On the control chart both upper and control limits are defined. Typically control limits are defined as three standard deviations from the mean. If the results fall within the control limits, then the process is stable; otherwise, it suggests that the process is not stable.

A run chart similar to a control chart, but the key difference is it can reveal shifts and trends, not the process stability. Since the run chart does not have control limits, it cannot detect out of control conditions. However, it will graphically depict how the process is running. You can turn a run chart into a control chart by adding upper and lower control limits. Pattern or trend indicates the presence of special cause variation in the process.

## Why use a run chart

A run chart is to determine whether or not the central tendency of the process is changing. Following are a few reasons to use a run chart

*Easy to construct

*It does not require too many calculations or software’ for analysis.

*Easy to interpret the results

*Minimum statistical knowledge is sufficient to draw and interpret the chart

## When to use run charts

*To visually depict how the process is performing

*Effectively track and communicate improvements (and determine success)

*To identify process variation and avoid unbiased actions

*Display outputs to look for stability or instability

## Key components of Run Chart

*Time- series: the specific time period of the output (hours, days, weeks, months); plotted on the horizontal (X) axis

*Output: The data measurement from the completed process; plotted on the vertical (Y) axis

*Data points: output values plotted on the chart

*Median line: the line on the graph that shows the average of all the output measure.

## Run chart interpretation rules

Following are the run chart decision rules to avoid inaccurate analysis and initiate appropriate improvement actions:

## Shift:

Seven or eight values in succession above or below the median line is a shift. Do not consider the points that fall on the median line as they are not toward or against the shift. Shift indicates a dramatic change in the process.

## Runs:

There too many or too few runs in the data displayed on the chart. In other words, one or more consecutive points are all lying on the same side of the line. Ignore the points exactly on the line!

## Clustering:

Too few runs or groups of points in one or more areas of the plot. It indicates measurement or sampling problems.

## Trend:

Seven or more consecutive points are increasing or decreasing. A basic rule of thumb is when a run chart exhibits seven or eight points successively up or down, then a trend is clearly present in the data and needs process improvement. This rule does not care whether the consecutive points are above, below, or crossing the median.

## Mixtures:

Too many runs in a chart with absences of points near the median line.

## Astronomical Point:

Astronomical points occur when there is one value that is highly different from the other data values on the chart. It would be a value that is highly unlikely to occur again and would appear as an outlier.

## Counting Runs

A run is defined as if the previous and next values are on opposite sides of median line and ignore if the value is on median line. To apply above mentioned interpretation rules, first we need to identify the useful values/observations in the data set. This can be achieved by counting the number of runs and avoid the values on the median line.

If you observe more or less runs than the expected in the chart means there is a non-random pattern in the process. Swed and Eisenhart developed a chart in 1943 to determine minimum and maximum number of runs required for each data point to follow random variation in the process. In other words, no special cause existed in the process.

## How to create run chart

*Determine the data to be measured

*Obtain the data – collect a minimum of 10 to 15 data points in a time sequence.

*Plot a graph with a time sequence in the horizontal x-axis (like, hours, days, weeks) and a vertical y-axis with measuring variable.

*Plot the data values in a time sequence

*Compute the mean/median and draw a horizontal line in the graph

*Analyze the graph, observe the trends and patterns to detect special cause variation in the process

## Example:

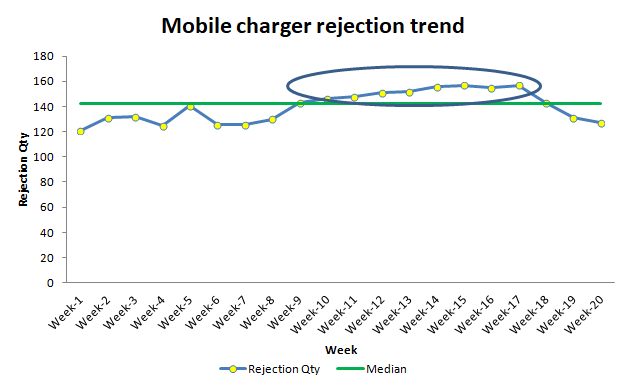

Draw and interpret the following weekly mobile charger rejection data using run chart.

## Solution:

*Enter the weeks data in one column and quantity in next column

*Plot a graph with weeks in horizontal x-axis, and a vertical y-axis with quantity

*Compute median value for the quantity and draw horizontal axis

## Benefits

*Easy to identify an early change in process and useful for analysis of the simple process.

*It is easy to draw and interpret the results

*Identify changes/ trends over time

*Run chart will depict the effects or results of the process improvements graphically.

## Limitations

*Formation of a run chart is based on the input values, it is not useful to identify unexpected or surprise events.

*It cannot identify the stability of the process as it does not have control limits.

*Every process will have some inherent variation. Often, normal process variation conclude that a trend or cycle exists in the process
